MAlB SAA HbA1c Specific Protein Analyzer 630nm Single Channel

Specific Protein Analyzer QR-100/QR-200 , CRP+hsCRP, mAlB, SAA, PCT, Cys-C, HbA1c, dimer, FDP

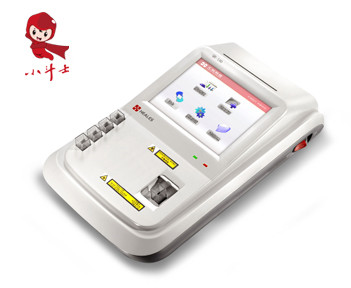

Specific Protein Analyzer QR-100

Single channel, can fast and quantitive tests for specific proteins controlled by microcomputer

The instrument have four advantages: rapid/ quantitative/ convenient and reliable

Specification Of QR-100

a. Channels ways: single channel

b. Test time: 50 ~ 120 seconds;

c. HCT values: 0.00 to 0.99 adjustable;

d. specimen types: whole blood, serum, plasma, urine, etc.;

e. wavelength: 630 ± 10nm, LED light source;

f. stray light of light sources ≤ 5%;

g. Absorbance value tolerance 4 hours after turn it on should be less than ± 5%;

h. Absorbance precision tolerance shall be less than ± 5%;

i. absorbance showing the value of the error should be less than ± 5% accuracy;

j. channel differences ≤ ± 5%;

k. absorbance linear range 0.0 ~ 2.0A;

l. Power: AC100-240V, 50Hz/60Hz, DC 12V/5A;

m. Environment humidity: <80%;

n. Air pressure: 86KPa ～ 106KPa;

Main features

Test Priciples Dural Systerm of nephelometry and turbidimetric test

Test structure Replaceable laser device and integrated test structure

Test methods Automatically Point-Of-Care Testing, test and number automatically after test tube is put in the device

Test Operation touch screen, easy operation, intelligent temperature controll and mixing, antomatically recognize blank and calculate results.

Speciment dilution Optional specimen types, specimen dilution ratios can be input and convert results automatically

HCT calibration Conversion of HCT value makes the results unified in the whole blood and the serums. Show all results in the same screen, easy to print and out put.

Result output Show all results in the same screen easy to print and output

FAQ

1. Are You Manufacturer Or Trading Company?

We are manufacturer of Specific Protein Analyzer

with over 15 years' experience. You can get competitive price SMT Mounting Machine here of high quality.

2. Do You Offer OEM/ODM Service?

Yes, we have rich experience in offering OEM service.

3. What is your MOQ?

Five sets

Dimension (length × width × height): 280mm × 160 mm × 100mm;

Instrument Weight: 1.8kg;

mAlB SAA Specific Protein Analyzer

630nm hba1c test analyzer

Single Channel hba1c test analyzer
