Specific Protein Analyzer QR-100 ,singel channel, CRP+hsCRP, mAlB, SAA, PCT, Cys-C, HbA1c, dimer, FDP

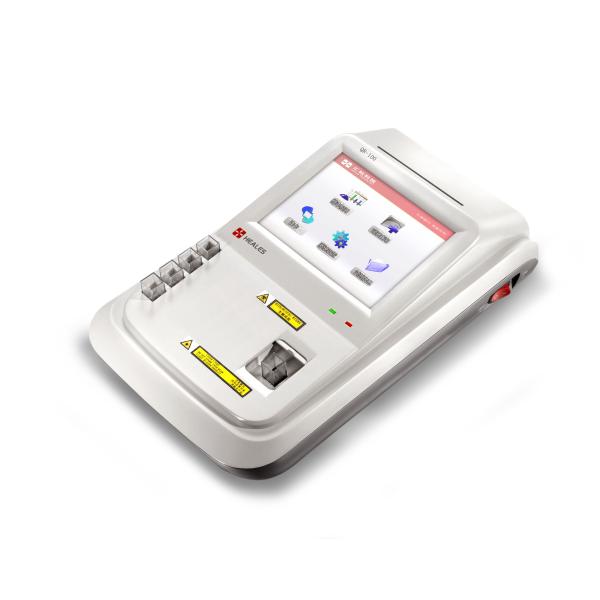

Specific Protein Analyzer QR-100
Used in hospitals and laboratories to do rapid test for specific protein.
For fast and quantitive tests for specific proteins, it's controlled by microcomputer
Specification Of QR-100
a. Singel channel
b. Test time: 50 ~ 120 seconds;
c. HCT values: 0.00 to 0.99 adjustable;
d. specimen types: whole blood, serum, plasma, urine, etc.;
e. wavelength: 630 ± 10nm, LED light source;
f. stray light of light sources ≤ 5%;
g. Absorbance value tolerance 4 hours after turn it on should be less than ± 5%;
h. Absorbance precision tolerance shall be less than ± 5%;
i. absorbance showing the value of the error should be less than ± 5% accuracy;
j. channel differences ≤ ± 5%;
k. absorbance linear range 0.0 ~ 2.0A;
l. Power: AC100-240V, 50Hz/60Hz, DC 12V/5A;
m. Environment humidity: <80%;
n. Air pressure: 86KPa ～ 106KPa;
About our advantages:
Rapid: 2 mintues creat test result
Quantitative:High senisitivity with dual systerm and wider testing range
Convenient: RF type non-contact agnetic card of reagent information, easy and visual to operate by touch scerren
Reliable: Specimen dilution and calibration of hematokrit (HCT) make the result uniform.
Main features
Test Priciples Dural Systerm of nephelometry and turbidimetric test
Test structure Replaceable laser device and integrated test structure
Test methods Automatically Point-Of-Care Testing, test and number automatically after test tube is put in the device
Test Operation touch screen, easy operation, intelligent temperature controll and mixing, antomatically recognize blank and calculate results.
Speciment dilution Optional specimen types, specimen dilution ratios can be input and convert results automatically
HCT calibration Conversion of HCT value makes the results unified in the whole blood and the serums. Show all results in the same screen, easy to print and out put.
Result output Show all results in the same screen easy to print and output for user
FAQ
1. Are You Factory/Manufacturer Or Trading Company?
We are factory/manufacturer of Specific Protein Analyzer
with over 15 years' experience. You can get competitive price SMT Mounting Machine here
2. Do You Offer OEM/ODM Service?
We have rich experience in offering OEM service.
3. What is your MOQ?
Five sets
